We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.

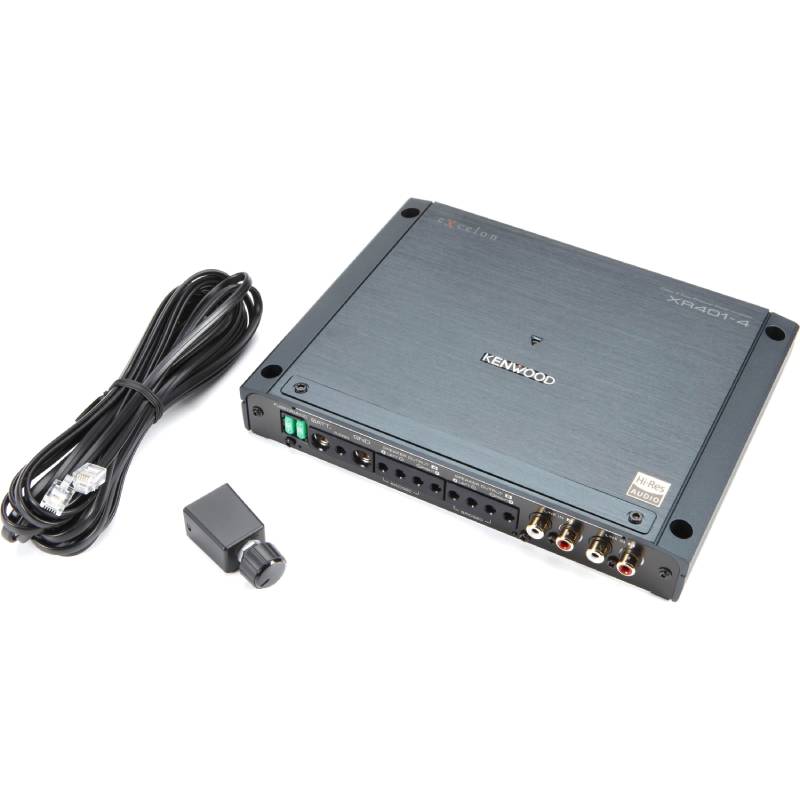

What's Inside?
•4-Channel amplifier
•Two 30-amp ATM mini blade fuses (installed)
•Wired Remote Commander
•Wired Remote Commander
•Flat washer
•Hex nut
•20' Remote cable (RJ-14 modular plugs on each end)
•4mm Allen wrench
•Four 5/8" Self-tapping screws
•Warranty card
•Owner's Manual
High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
High Performance Parts
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
Deep Bass Sound
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
Enhanced Signal to Noise Ratio
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

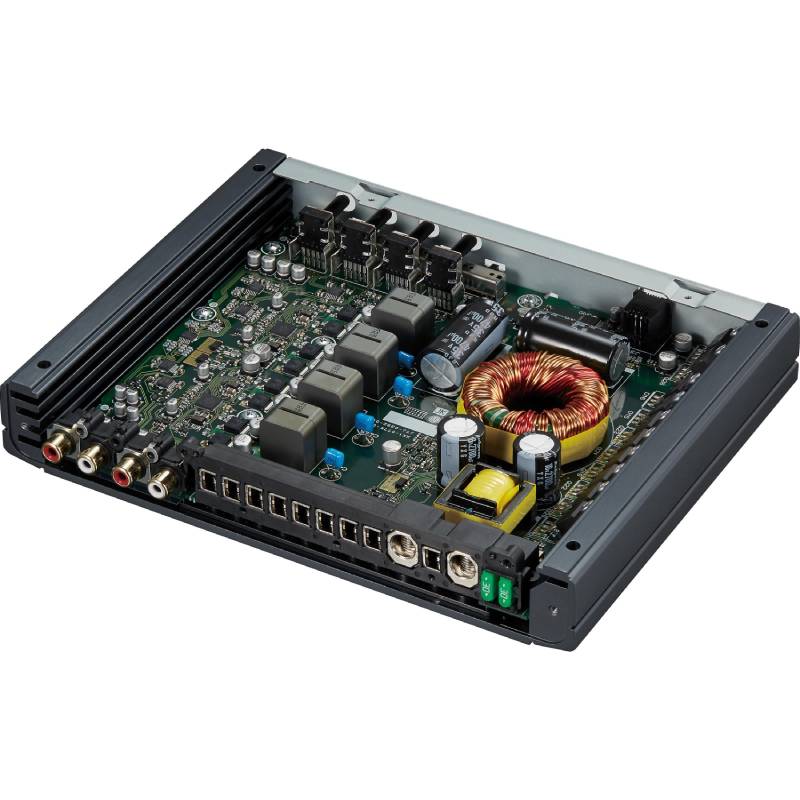

Specialized Circuit Design
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 75 x 4 |
| Peak Power Output (Watts x Channels) | N/A |
| Power at 2 Ohms (Watts x Channels) | 100 x 4 |
| Bridged Power (Watts x Channels) | 200 x 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 or 2.5k-10k |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 50-200 or 2.5k-10k |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Best Frequency Response | 20-40k Hz |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 76 dB |
| Input Voltage | 14.4v |
| Bass Boost | No |
| Bass Boost Frequency | N/A |
| Fan Cooled | No |
| Fuse Rating | 60 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Width (inches) | 8 11/16" |
| Height (inches) | 1 7/16" |
| Depth (inches) | 7" |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
