Kenwood Excelon P-XW1002B

Watch Sean's Video Review of The Kenwood Excelon P-XW1002B

We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.

What's Inside?
• Loaded 10" passive subwoofer enclosure

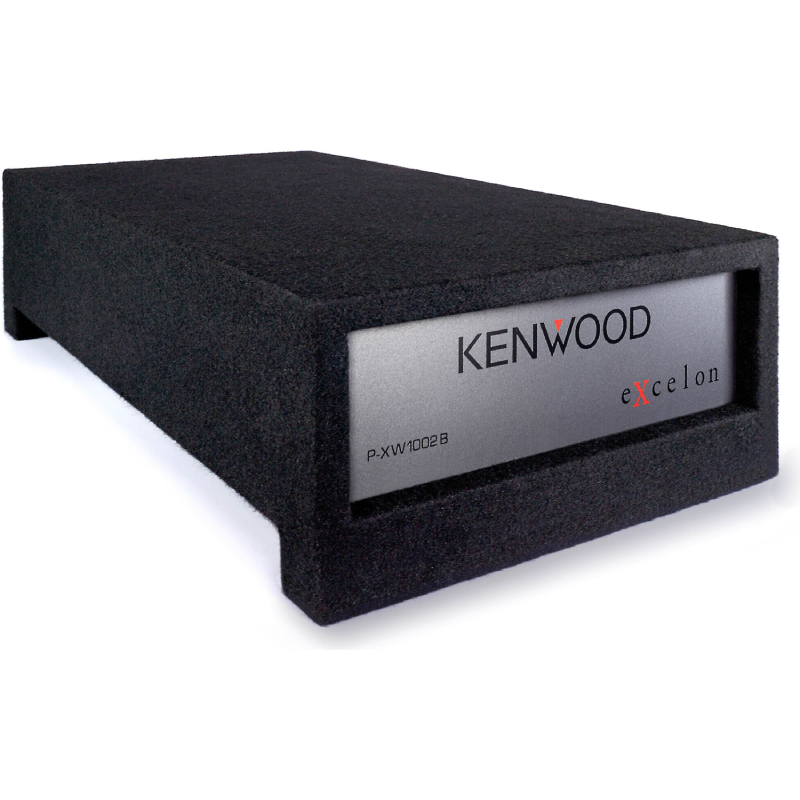

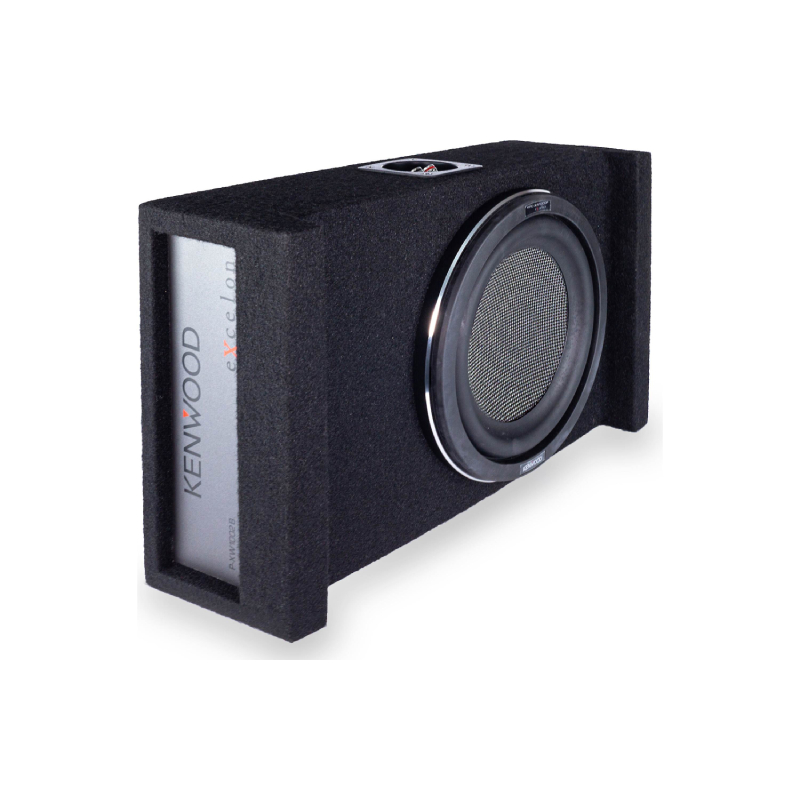

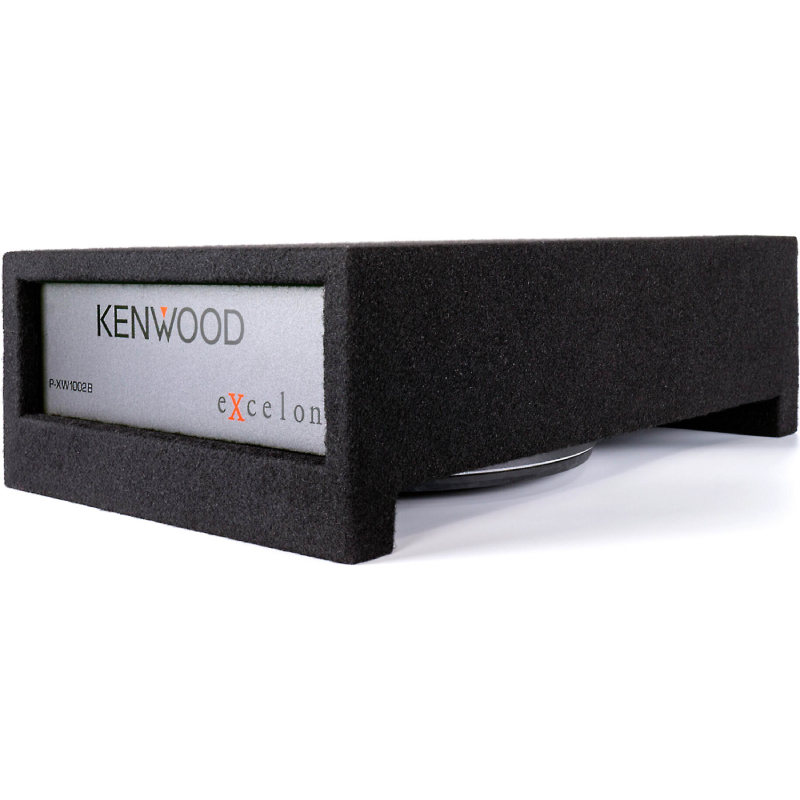

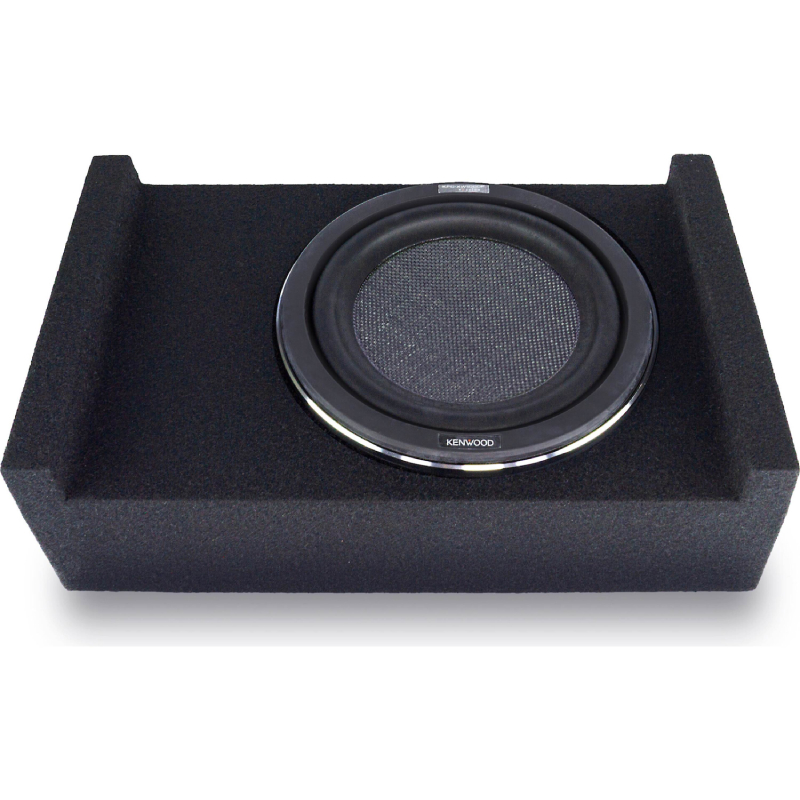

Kenwood P-XW1002B 10" Sealed Down-Firing Subwoofer Enclosure – 1000W Peak

The Kenwood P-XW1002B is a compact, high-performance 10-inch subwoofer system featuring a sealed down-firing enclosure and the premium KFC-XW1000F shallow-mount subwoofer. Designed for powerful bass in tight vehicle spaces, this enclosure delivers 1000W peak power handling and 250W RMS performance with clean, controlled low-frequency output.

Built with a carbon glass fiber honeycomb cone and aluminum die-cast basket with Heat Transfer Motor Structure, this subwoofer is engineered for durability, thermal efficiency, and accurate bass reproduction. The low-profile sealed down-fire design enhances bass response while protecting the woofer — making it ideal for trucks, SUVs, and space-conscious installations.

Key Features

• 1000W Peak Power
• 250W RMS Power Handling
• 10" KFC-XW1000F Shallow-Mount Subwoofer
• Sealed Down-Firing Enclosure Design
• Aluminum Die-Cast Basket with Heat Transfer Motor Structure
• Carbon Glass Fiber Honeycomb Cone
• Smooth Linear Spider for controlled excursion
• 38.0 oz High-Strength Magnet
• Black Carpeted MDF Enclosure
• Acoustic Damping Material Inside Enclosure
• 8 AWG Capable Push Terminals
•

Subwoofer Specifications

• Speaker Size: 10" (KFC-XW1000F Shallow-Mount)
• Peak Power: 1000W
• RMS Power: 250W
• Frequency Response: 35Hz – 800Hz
• Sensitivity: 90 dB (W at 1m)
• Impedance: 4Ω
• Magnet Weight: 38.0 oz

Enclosure Specifications

• Design: Low-Profile Sealed Down-Fire Configuration
• Material: Black Carpeted MDF Construction
• Internal Acoustic Damping Material
• Speaker Terminals: 8 AWG Compatible Push Terminals


Why Choose the Kenwood P-XW1002B?

The sealed down-firing design protects the subwoofer while delivering tight, accurate bass with improved load coupling to the vehicle floor. The shallow-mount KFC-XW1000F driver allows installation in vehicles with limited depth clearance without sacrificing performance.

Whether upgrading a factory audio system or adding low-frequency reinforcement to an aftermarket build, the Kenwood P-XW1002B provides reliable power handling, durable construction, and clean bass response in a compact footprint.
