We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products.

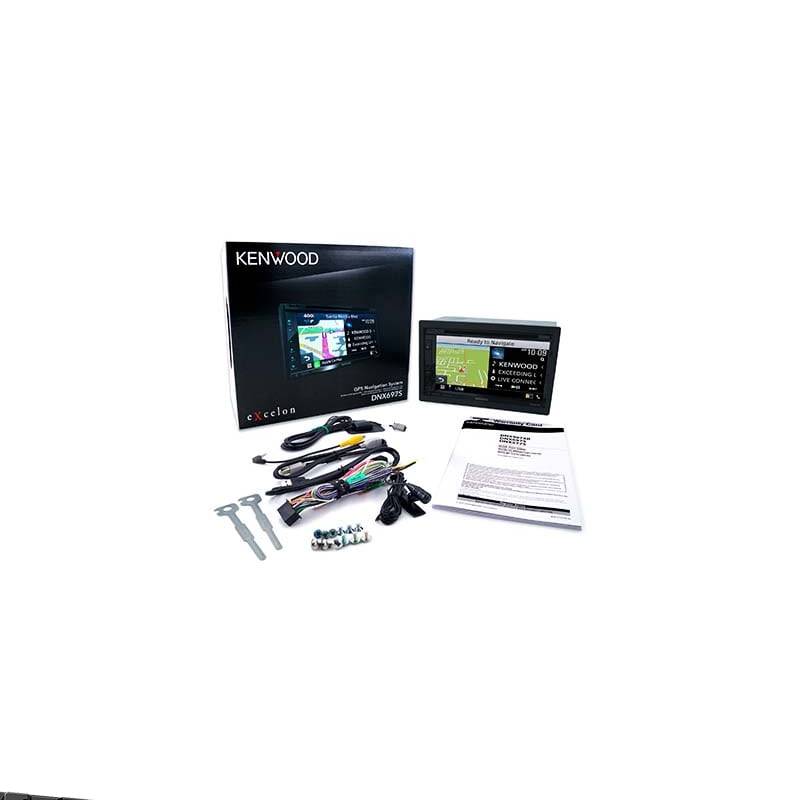

What's Inside?
•Navigation receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
•Sleeve (attached)
•Trim ring
•Wiring harness
•Two 39" USB extension cables
•GPS antenna (attached 11.5' cable terminated by a proprietary connector)
•Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
•7" Male minijack to female RCA adapter cable
•Self-adhesive pad
•2 Radio removal tools
•6 Pan-head ISO-mount screws
•6 Flat-head ISO-mount screws
•Quick Start Guide
•Warranty card
•Owner's Manual
Has Built-in GPS Navigation

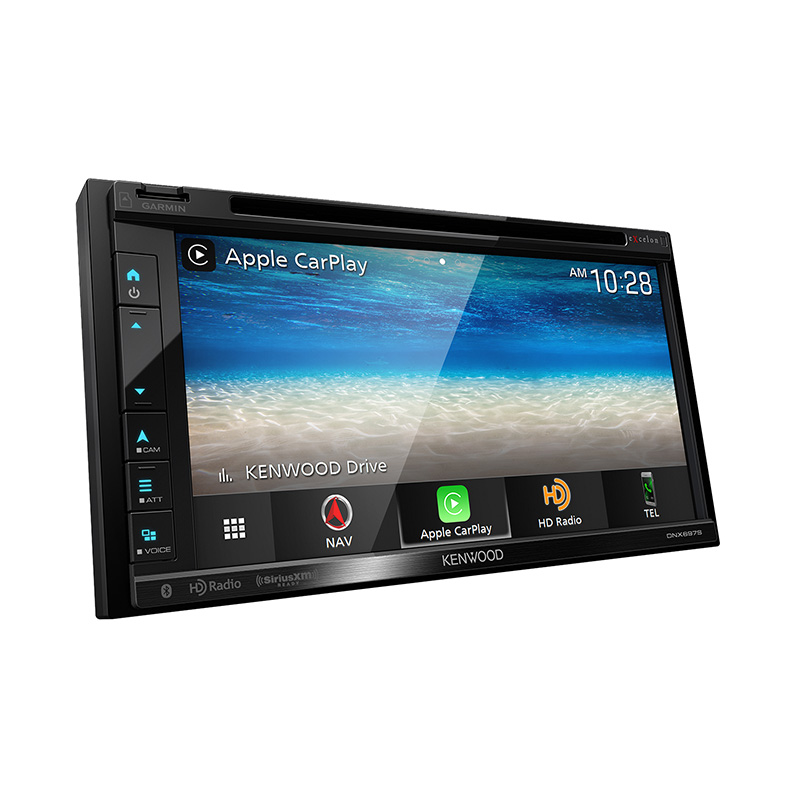

The Kenwood Excelon DNX697S is a high-end in-dash navigation receiver designed to provide a comprehensive multimedia experience in your vehicle. Its advanced features and intuitive interface make it an excellent choice for those seeking top-of-the-line functionality.

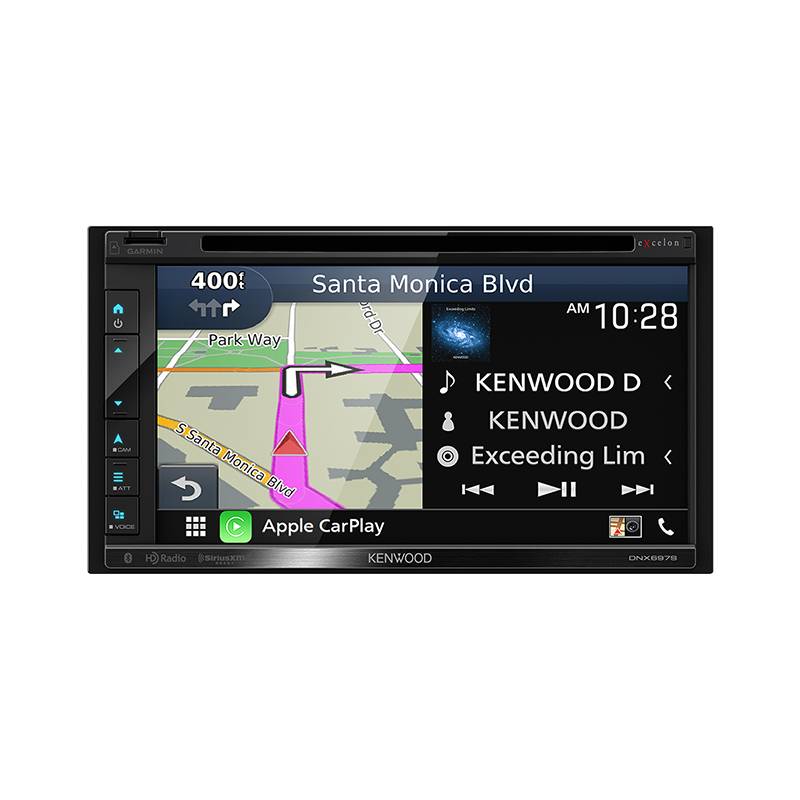

The DNX697S features a 6.75-inch touchscreen display with a user-friendly interface, allowing easy control and access to its various functions. It has built-in GPS navigation, providing accurate turn-by-turn directions and real-time traffic updates to help you reach your destination efficiently.
Supports Apple Carplay and Android Auto
This receiver supports Apple CarPlay and Android Auto, allowing seamless integration with your smartphone for hands-free calling, messaging, music streaming, and access to various apps. It also features Bluetooth connectivity for wireless audio streaming and hands-free calling.
The DNX697S delivers high-quality AM/FM radio broadcasts with enhanced sound clarity, equipped with a built-in HD radio tuner. It is also compatible with SiriusXM satellite radio, providing access to a wide range of premium channels for endless entertainment options.
A Feature-packed in-dash Navigation Receiver
With its dual USB inputs and support for various audio and video formats, including FLAC and high-resolution audio, the DNX697S ensures excellent audio and video playback quality. It also offers multiple preamp outputs, allowing for seamless integration with external amplifiers and speakers for enhanced sound performance.
The Kenwood Excelon DNX697S is a feature-packed in-dash navigation receiver with advanced multimedia capabilities and reliable navigation features. Its intuitive interface and wide range of connectivity options make it a top choice for those seeking a premium in-car entertainment and navigation system.
| Brand | Kenwood |
| AUX Input | Mini (rear) |
| Audio/video Input | Mini (rear) |
| USB Input | Rear (2) |
| USB Port Power | 1.5A |
| Backup Camera Input | Yes |
| Second Camera Input | Yes |
| CarPlay | Yes |
| Android Auto | Yes |
| Siri Control | CarPlay only |
| Alexa Voice Control | N |
| Android Control | Yes |
| Memory Card Slot | USB, microSD |
| Bluetooth Compatible | Built-in |
| Satellite Radio Ready | SiriusXM 3.0 |
| HD Radio | Y |
| Navigation | Yes |
| RMS Power (CTA-2006) | N/A |
| RMS Power (Manufacturer) | 22 watts |
| Peak Output | 50 watts |
| RMS Power Bandwidth | 20-20kHz |
| Preamp Outputs | 6-channel |
| Sub Preamp Outputs | Yes |
| Switchable Rear Preamp Outputs | No |
| Video Screen | Yes |
| Navigation App Compatible (iOS) | Apple, Google, Waze |
| Navigation App Compatible (Android) | Google, Waze |
| Preamp Voltage | 5 volts |
| Screen Size | 6.75 |
| Screen Type | Basic (Resistive) |
| Full size | No |
| Nano | No |
| Touch | 6Gen and newer |
| iPhone | 5S and newer |
| Key Button Color | Variable |
| EQ Bands | 13 |
| Wireless Remote | Optional |
| Steering Wheel Control Compatible | Adapter required |
| FM Sensitivity | 9.3 dBf |
| European Tuning | No |
| Seek/Scan | Seek |
| Radio Data System | Yes |
| Music File Playback | MP3,WMA,AAC,FLAC,WAV |
| High-res Playback | WAV/FLAC (24-bit/192kHz) |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
