CONNECT WITH BLUETOOTH® WIRELESS STREAMING
JL Audio products with BLUETOOTH technology make it simple to integrate your compatible streaming devices with the audio system on your boat or powersport vehicle. All models feature BLUETOOTH v5.0 with the Qualcomm® aptX™ HD codec for outstanding audio fidelity — and they’re built to take on the outdoor life with weatherproof construction and an IPX7 water rating.
- EASILY ADD BLUETOOTH A2DP STREAMING TO ALMOST ANY AUDIO SYSTEM
- INSTALL WITH HIDEAWAY REMOTE AUDIO RECEIVER OR DASH-MOUNT CONTROLLER AND RECEIVER
- CONNECT WITH UP TO 35 FT (11 METERS) OF WIRELESS RANGE
- HOUSED IN AN IPX7-RATED, WATER-RESISTANT CHASSIS
- EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
AUDIO STREAMING SIMPLIFIED
JL Audio products with BLUETOOTH technology can stream your favorite tunes from compatible A2DP devices directly to your audio system — delivering dynamic, CD-like sound quality via wireless connection.
TWO INSTALL OPTIONS

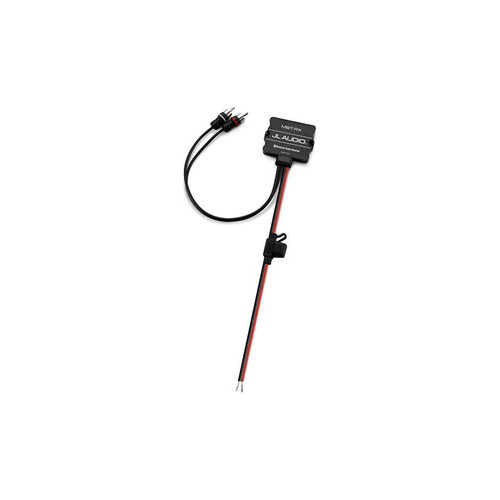

The tiny MBT-RXv2 remote-mount receiver can be hidden almost anywhere, allowing easy control from your mobile device. The gauge-hole mounting design installs easily into flat panels, and an adapter plate is included for front-mount applications or where rear access is limited.
EASY BLUETOOTH PAIRING
A simple procedure wirelessly pairs your audio receiver to your streaming device. Reconnection is automatic after initial pairing, and your connected device can then control playback, volume and media selection — or use the controls provided with the MBT-CRXv3 system.
TWO AUDIO ZONES
The MBT-CRXv3 has 2 sets of stereo preamp outputs (4-volt RMS) to feed 2 main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
TOUCH-CONTROL CAPABLE
The gauge style MBT-CRXv3 model features large backlit controls for easy operation day or night. It connects directly to an amplifier for use as a standalone source unit or add-on receiver.
ALL-WEATHER DURABILITY
Housed in a sealed and water-resistant (IPX7-rated) chassis, these premium audio receivers are ideally suited for challenging outdoor applications and corrosive marine environments.
| Brand | JL Audio |
| Physical dimensions (Height) | Controller: 2.15" (55 mm) | Receiver: 2.28" (58 mm) |
| Physical dimensions (Width) | Controller: 2.15" (55 mm) | Receiver: 2.64" (67 mm) |
| Physical dimensions (Depth) | Controller: 3.10" (79 mm) | Receiver: 0.79" (20 mm) |
| Control Surface Dust/Water Rating (when properly installed) | Controller: IP67 | Receiver: IPX7 |
| Current draw (max) | Controller: 108 mA | Receiver: 40 mA |
| BLUETOOTH® wireless range | Up to 35 ft (11 meters) |
| Wireless frequencies/protocols | BLUETOOTH® |
| Power Input | Controller: 8-16 VDC | Receiver: 10-16 VDC |
| BLUETOOTH® wireless technology | Yes |
| RCA pre-out (left, right and subwoofer - requires external amplification) | Controller: 2 zones (L+R), 1 mono output | Receiver: L + R only |
| Line out (requires external amplification) | Controller: 2 (L + R per zone) | Receiver: 1 (L + R) |
| Subwoofer out (requires external amplification) | Controller: Zone 1 (1 mono output) |
| Multi-Zone Technology | Controller only |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
