What's Inside?
• (2) 8.8" 2-Way Marine Coaxial Speakers
• (12) 1-1/2" Philips-head stainless-steel screws
• (12) Stainless-steel flat-washers
• Template
• Owner's Manual
Built for Real Marine Duty

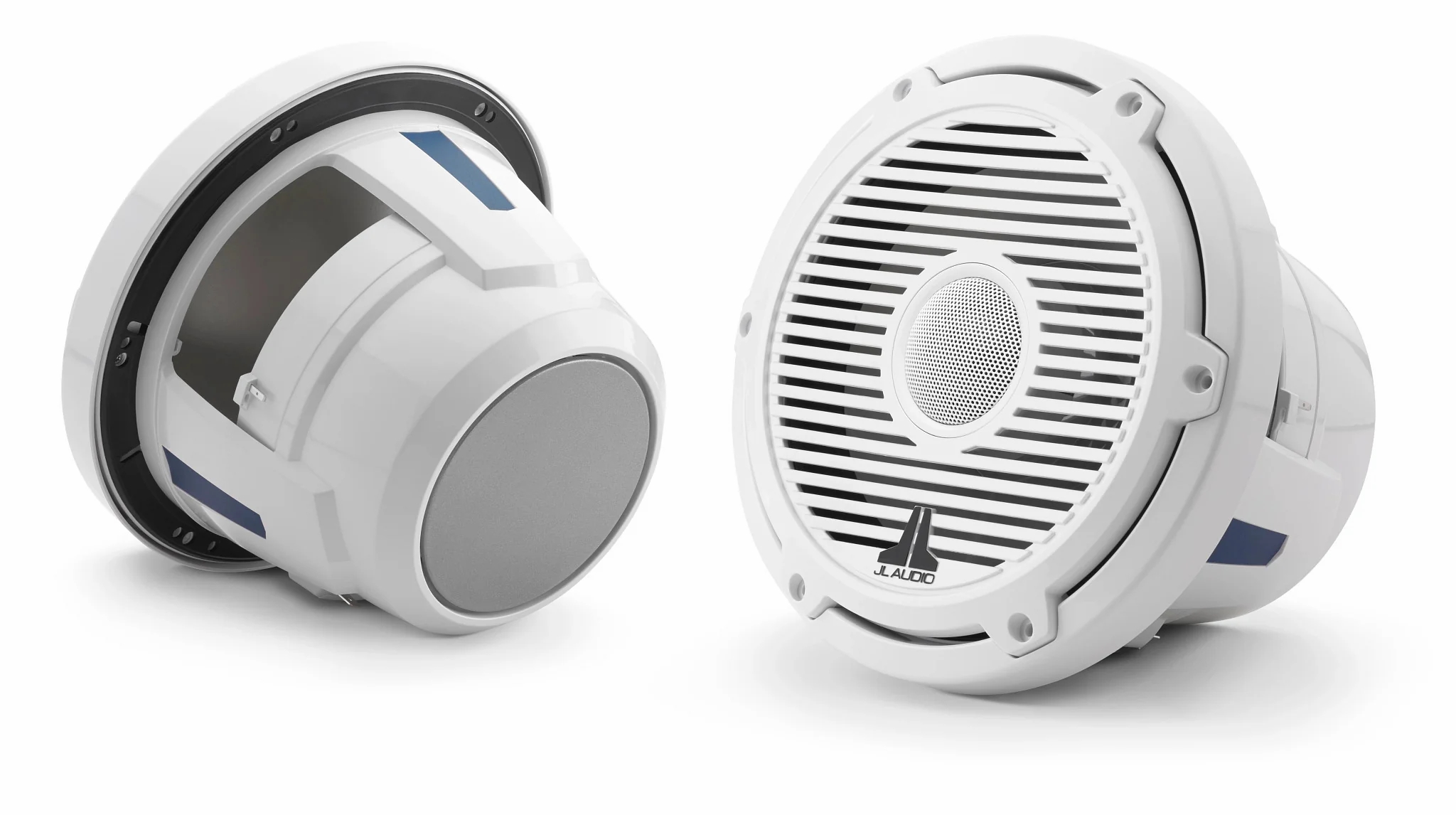

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment. A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor.
Handles The High-Frequency Duties
A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
True 2-Way Passive Crossover
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
| Brand | JL Audio |
| ontinuous Power Handling (RMS) | 125 W |
| Recommended Amplifier Power (RMS) | 50 - 250 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ? |
| System Frequency Response | 38 Hz - 20 KHz ± 3 dB |
| Frame Outer Diameter (A) | 8.80 in / 224 mm |
| Bolt Hole Circle Diameter (B) | 7.97 in / 202 mm |
| Frontal Grille Protrusion* (C) | 1.37 in / 35 mm |
| Mounting Hole Diameter (D) | 7.375 in / 187 mm |
| Mounting Depth (E) | 5.00 in / 127 mm |
| Note | Frontal grille protrusion measured from mounting surface |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
