We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
•Two 2-way Marine speakers with grilles attached
•Twelve 1-1/8" Philips-head stainless-steel screws
•12 Stainless-steel flat washers
•Owner's manual
Deliver Excellent Performance

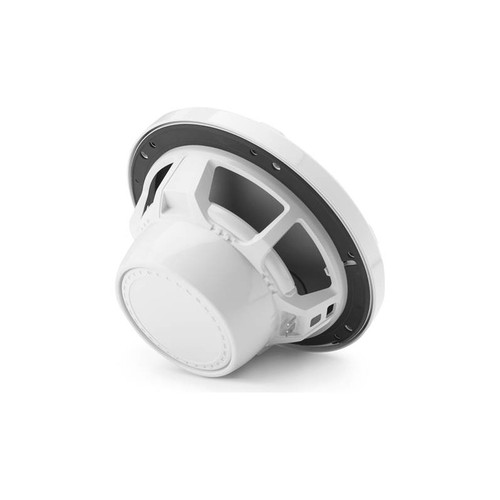

M3 7.7-inch Marine Coaxial Speakers (70 W, 4 Ω) - Gloss White Sport Grille with RGB LED Illumination
Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models. The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at high volumes than smaller speakers.
Pure Silk Dome Tweeter
The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance. A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties.
Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics. Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey.
Optional RGB Controller to Create Thousands of Color Variations
Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.
Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel. Production of this model takes place in JL Audio's Miramar, Florida factory, using global materials and components.
Brand | JL Audio |
Speaker Size | 7.7 |
Design | 2-way |
Tweeter Design | 3/4" Dome |
Tweeter Composition | Silk |
Woofer Composition | Mica-filled IMPP |
Woofer Surround | Synthetic Rubber |
Sensitivity | 90.5 dB at 1 watt |
Frequency Response | 45 - 25k Hz |
Max RMS Power Handling | 70 |
Peak Power Handling (Watts) | 225 |
Impedance (Ohms) | 4 |
Top-mount Depth (Inches) | 3.25 |
Bottom-mount Depth (Inches) | N/A |
Cutout Diameter or Length (inches) | 6.25 |
Bolt Circle | 6.91 |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
