We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
•One 10" Dual 4-ohm voice coil subwoofer
•2 Voice coil jumper wires (installed)
•Black plastic trim ring (installed)
•Voice coil connection warning
•Owner's manual
Best-selling Subwoofer Product

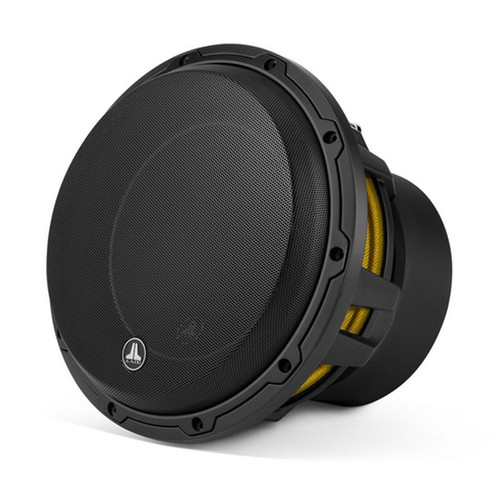

Belonging to the family of JL Audio's best-selling subwoofer product line, the JL Audio 12W6v3-D4 stays true to the excellent reputation established by its roots in 1993.
Made by applying a vast collection of advanced technologies, it also borrows some from JL Audio's flagship products.The subwoofer comes with a polypropylene cone with a rubber surround to ensure accurate bass performance with reduced distortion and durability after prolonged hours of use at high volume levels.
Excellent Cooling System
Thanks to JL Audio's patented technologies like Elevated Frame Cooling and Pole-Vent Airflow Control, this gives the subwoofer an excellent cooling system that can dissipate the heat as quickly as possible.
This will not only protect your subwoofer from blowing off but will also improve its performance.With JL Audio's DMA-optimized motor system, there is less distortion and more clarity to the bass you will hear from the subwoofer. Another nice feature of the subwoofer is that it has a terminal jumper system that allows you to adjust its impedance.
Play Heart-pounding Bass Track
The JL Audio 12W6v3-D4 can handle a power output of 600 Watts RMS at 4 ohms and can reach up to 1,200 Watts of peak power. Its frequency response of 20 to 200 Hz and sensitivity rate of 85.
4 dB allows you to play any heart-pounding bass track on your audio device at high-level volumes with minimal distortion.Made in JL Audio's Florida manufacturing facility, you are rest assured that the subwoofer is built with the strictest quality control to achieve the best build quality as much as possible.
Brand | JL Audio |
Size | 12 -inch |
Impedance (Ohms) | 2, 8 |
Cone Material | Mineral-filled IMPP |
Surround Material | Rubber |
Port diameter (inches) | N/A |
Port length (inches) | N/A |
Max RMS Power Handling | 600 |
Peak Power Handling (Watts) | 1200 |
Top Mount Depth (inches) | 7.5625 |
Bottom Mount Depth (inches) | N/A |
Cutout Diameter or Length (inches) | 11 |
Free-Air | No |
Dual Voice Coil | Yes |
Sensitivity | 85.4 dB at 1 watt |
Frequency Response | 20 - 200 Hz |
Vas (liters) | 54.37 |
Fs (Hz) | 26.919 |
Qts | 0.463 |
Xmax (millimeters) | 19 |
Ideal Sealed Box Volume (cubic feet) | 1.105 |
Minimum Sealed Box Volume (cubic feet) | N/A |
Maximum Sealed Box Volume (cubic feet) | N/A |
Ideal Ported Box Volume (cubic feet) | 1.405 |
Minimum Ported Box Volume (cubic feet) | N/A |
Maximum Ported Box Volume (cubic feet) | N/A |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
