What's Inside?
•(1) 10" Thin-Line 2-ohm subwoofer
•Grille (installed)
•Owner's manual
Shallow-mount Design and Many Impressive Features

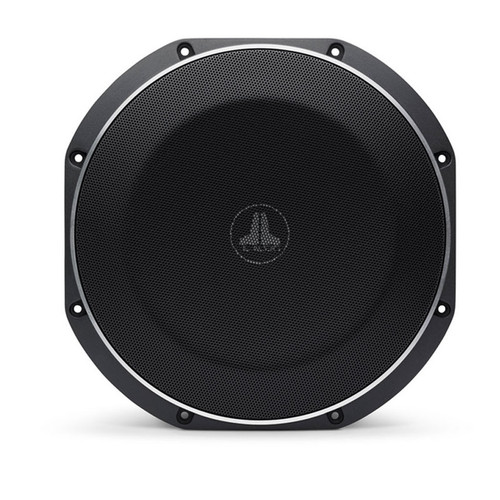

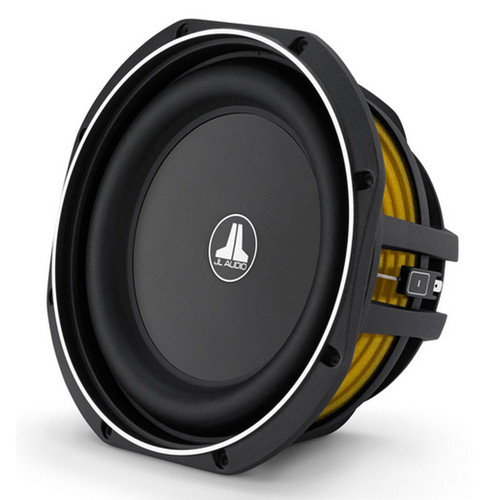

A car subwoofer with a shallow-mount design and many impressive features, the JL Audio 10TW1-4 is the perfect upgrade for your car's factory subs. This 10-inch subwoofer can put in some heart-pounding bass and would not need too much space to be installed inside your vehicle.
Polypropylene Cone and a Rubber Surround
The JL Audio 10TW1-4 has a mica-filled polypropylene cone and a rubber surround, which gives the subwoofer the rigidity and durability to withstand extended usage at high volume levels while producing an accurate bass response with only minimal distortion.
Famous Concentric Tube Suspension
It uses JL Audio's DMA-optimized motor design, which helps reduce distortion while producing a clean and punchy low-frequency performance. The JL Audio 10TW1-4 also has the company's famous Concentric Tube Suspension, which significantly improves the subwoofer's excursion, allowing for more air pressure and resulting in louder and better bass performance.
Loud With Less Distortion
The JL Audio 10TW1-4 has a power output of 300 Watts RMS and can reach up to 600 Watts of peak power at a 4-ohm impedance. It has a frequency response of 26 up to 200 Hz and a sensitivity rate of 82.2 dB, allowing the subwoofer to go deep and loud with less distortion.
Brand | JL Audio |
Size | 10 -inch |
Impedance (Ohms) | 4 |
Cone Material | Mica-filled Polypropylene |
Surround Material | Rubber |
Port diameter (inches) | N/A |
Port length (inches) | N/A |
Max RMS Power Handling | 300 |
Peak Power Handling (Watts) | 600 |
Top Mount Depth (inches) | 4.375 |
Bottom Mount Depth (inches) | N/A |
Cutout Diameter or Length (inches) | 9.0625 |
Free-Air | No |
Dual Voice Coil | No |
Sensitivity | 82.2 dB at 1 watt |
Frequency Response | 26 - 200 Hz |
Vas (liters) | 12.15 |
Fs (Hz) | 38.09 |
Qts | 0.601 |
Xmax (millimeters) | 10 |
Ideal Sealed Box Volume (cubic feet) | 0.35 |
Minimum Sealed Box Volume (cubic feet) | 0.28 |
Maximum Sealed Box Volume (cubic feet) | 0.54 |
Ideal Ported Box Volume (cubic feet) | 0.625 |
Minimum Ported Box Volume (cubic feet) | 0.5 |
Maximum Ported Box Volume (cubic feet) | 0.87 |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
