The EPICENTER

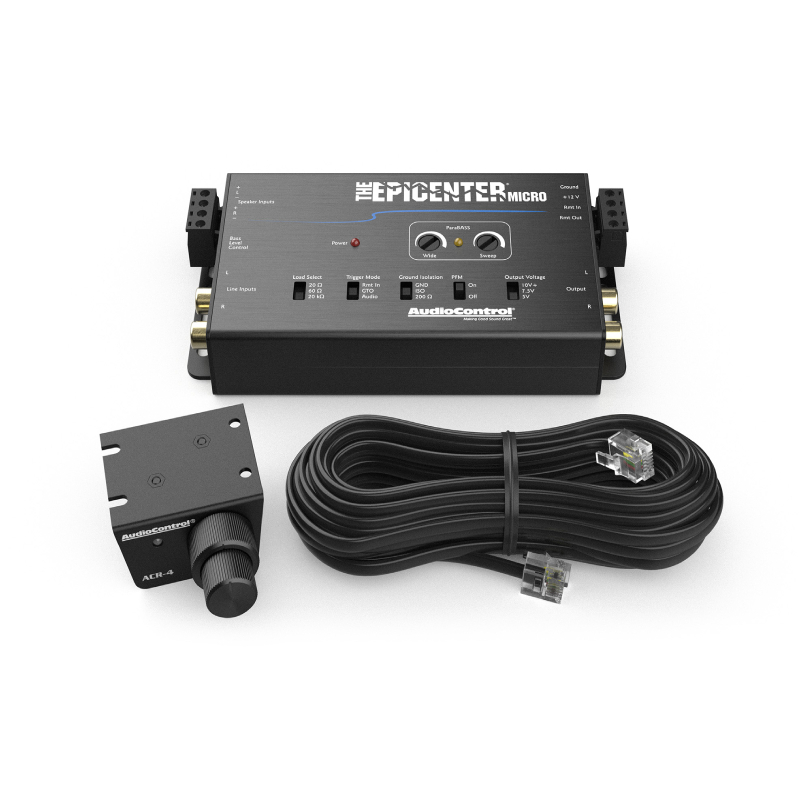

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs.
Restore your Bass!
The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to indepenently adjust bass restoration and output level.
Bass Maximizer
The Epicenter® Micro is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The Epicenter® Micro to drop down a few octaves and reproduce the “missing” bass notes.
Line Output Converter
Beyond maximizing bass, The Epicenter® Micro is a line output converter packed with premier OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be bypassed and Output Voltage can be configured for up to 10 Volts!
| Brand | AudioControl |
| Maximum Line Level Input | 15 volts RMS |
| Maximum Speaker Level Input | 40 volts (400 watts) using 20 k? input load setting |
| THD | 0.03% |
| Frequency Response | 10 Hz-22 kHz |
| S/N Ratio | 105 dB |
| PFM Subsonic Filter | 20 Hz/off (bypass) |
| Current Draw | 300mA |
| Recommended Fuse | 1-amp |
| Line Input Impedance | 7 k? |
| Speaker Level Input Impedance | 20?, 60?, 20 k? |
| Maximum Output Level | 9.5 volts RMS/13 volts peak |
| Output Impedance | 150? |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
