We are an Alpine authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
• Driver side enclosure
• Passenger side enclosure
• Front link bracket (installed on back of front cover)
• Rear link bracket
• Front cover w/ attached trim bars
• (2) Amp tray brackets
• (6) Stacking feet (installed on enclosures)
• (2) Extra foot spacers
• (2) Extra rubber feet
• 4mm Allen key
• 3mm Allen key
Fits Neatly

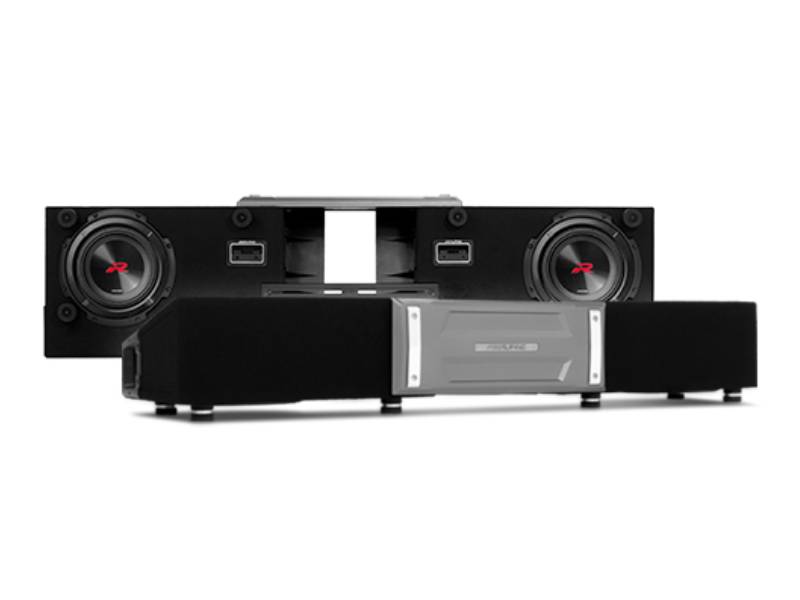

When you have a great truck, you want more than a run-of-the-mill subwoofer system – you want great looks and great sound. Alpine's S-DB8V-TRK loaded sub enclosure offers the sound and style you've been looking for in a package that fits neatly under your seat while giving you the solid bass you want.
High Amplitude Multi-Roll
The S-DB8V-TRK handles up to 600 watts RMS power, so you'll get plenty of punch from its two S-W8D2 8" subs. The subs feature Alpine's Kevlar-reinforced pulp cone and rubber High Amplitude Multi-Roll (HAMR) surround for tough performance. The enclosure is wired for a 2-ohm load, making amplifier selection simple. The enclosure's side-firing ports load the cabin interior to boost the lows, for deeper bass at higher volume levels.
Adjustable Mounting Feet
The rugged 5/8" MDF enclosure is clothed in black carpet covering that combines toughness and good looks, with a central metal Pro-Link™ bracket that lets you adjust the enclosure's total width from 40" to 51" to fit under the seat of most full-sized crew cab trucks, or in the cargo area of the Jeep Wrangler JK and JL. An integrated amplifier mounting tray is optimized for Alpine's mono sub amps, and its EZ Change twist-lock grille system gives you speaker protection options to coordinate with your truck's interior. Adjustable mounting feet ensure a secure fit.
| Brand | Alpine |
| Compatible vehicle types | Car/Truck/SUV/Van |
| Series | S Series |
| Subwoofer Design | Round / Circle |
| Voice Coil(s) | Dual |
| Woofer Surround | High-Amplitude Multi-Roll (HAMR) |
| Woofer Composition | Polypropylene |
| Sensitivity | 84 dB |
| Impedance (Per Voice Coil) | 2 ohm |
| RMS Power Handling | 300 watts |
| Peak Power Handling | 600 watts |
| Frequency Response | 34 - 200 Hz |
| Xmax (millimeters) | 13 mm |
| Subwoofer Size | 8" |
| Number of Subwoofers | 2 |
| Box Style/Shape | Vehicle Specific |
| Height | 8.75" |
| Width | 13.75" |
| Depth | 40-51" |
| Wood Thickness | 5/8" |
| Number of Terminals | 1 |
| Box Exterior Color | Black |
| Box Finish | Carpet |
| Final Wired Impedance | 2-ohm |
| Type of Enclosure | Loaded |
| Box Type | Ported |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
