We are an Alpine authorized dealer so you get up-to-date, fully warrantied products.
What's Inside:
• (1) 10" Powered Subwoofer Enclosure
• (1) RCA input line
• (1) High-level input line
• (2) Installation tape
• (1) User manual
• (1) Terminal block
• (1) Remote control cable (5M)
• (1) Remote control
Alpine PWE-SB10 10" Powered Subwoofer Wedge Enclosure – 300W RMS Built-In Amplifier
The Alpine PWE-SB10 is a compact 10-inch powered subwoofer wedge enclosure designed to deliver powerful bass performance in a space-saving design. Featuring a built-in 300W RMS amplifier and a 10" subwoofer with a 3Ω voice coil, this all-in-one bass solution provides efficient power matching and dynamic low-frequency output.
Its sealed wedge-style enclosure allows flexible installation in trunks, cargo areas, and behind seats, making it ideal for cars, trucks, and SUVs. With selectable high-level and low-level inputs, adjustable low-pass filter, and included remote bass control, the PWE-SB10 integrates easily with both factory and aftermarket audio systems.
Key Features
- 10" powered subwoofer wedge enclosure
- Built-in 300W RMS amplifier
- 450W peak power handling
- Compact wedge design for universal installation
- Sealed enclosure for tight, accurate bass
- 3Ω voice coil for efficient power matching
- Selectable high-level and low-level inputs
- Adjustable low-pass filter
- Phase control (0°–180°)
- Remote bass level control included (0–12 dB)
- Auto turn-on mode
- Carpeted enclosure with black leather wrap
- Embroidered Alpine logo
Performance Specifications
- Subwoofer Size: 10"
- Amplifier Power: 300 Watts RMS / 450 Watts Peak
- Voice Coil Impedance: 3 Ohm
- Frequency Response: 35 Hz – 200 Hz
- Enclosure Type: Sealed
- Low-Pass Filter: 50 Hz – 150 Hz (adjustable)
- Phase Control: 0° – 180°
Connectivity & Controls
- Low-level (RCA) inputs
- High-level speaker inputs
- Auto turn-on mode
- Remote bass level control included

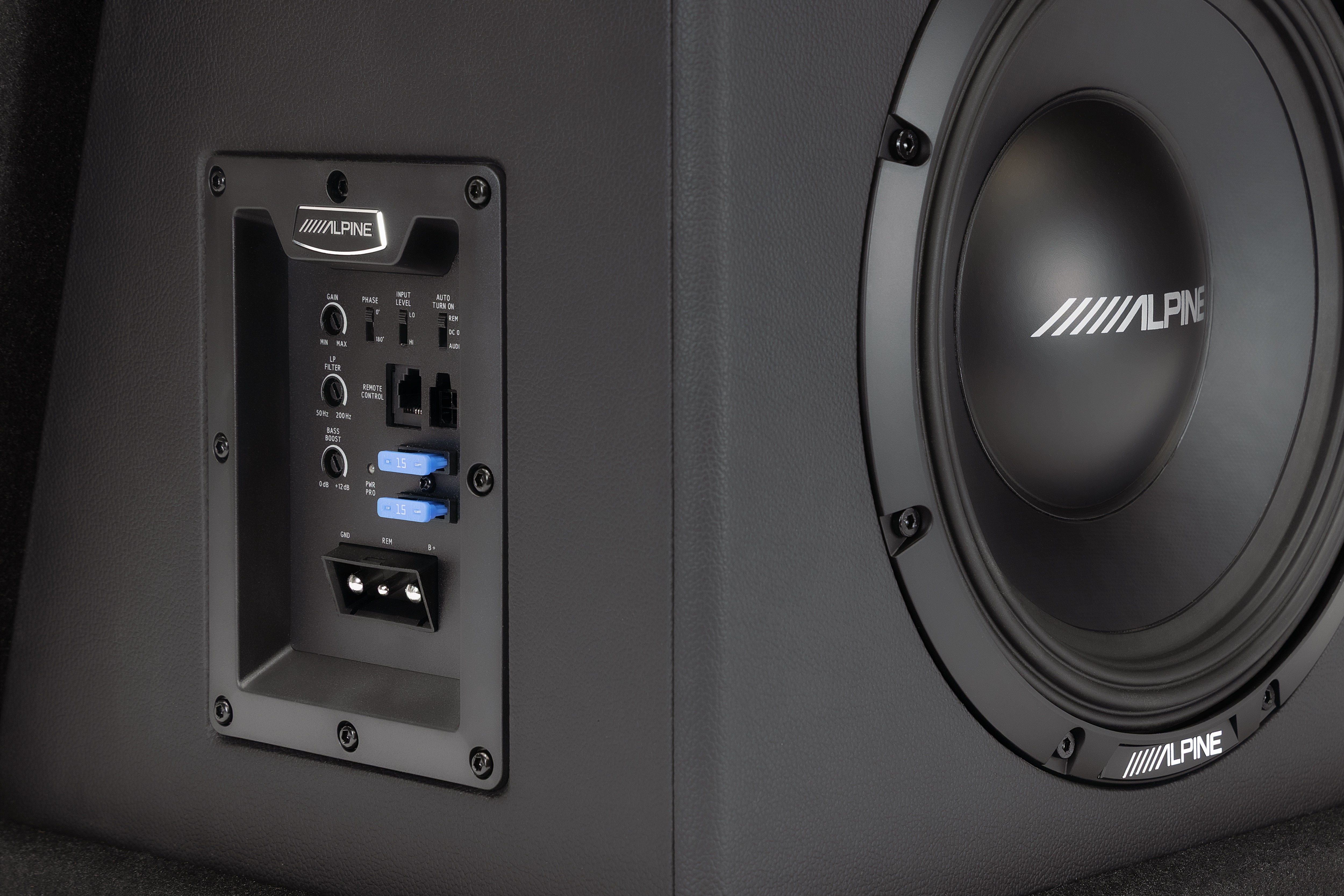

- Side-mounted amplifier terminals for easy connection
Enclosure Design
- Compact wedge-style cabinet
- Carpeted box with black leather wrap
- Anti-vibration construction
- Universal fit for multiple vehicle types
Dimensions & Weight
Product Dimensions:
- Width: 16.75"
- Depth: 13.5"
- Height: 13.33"
- Weight: 30.5 lbs
Why Choose the Alpine PWE-SB10?
The Alpine PWE-SB10 is an all-in-one powered subwoofer solution designed for easy installation and strong bass performance. With a built-in amplifier, compact wedge enclosure, and flexible input options, it provides a simple upgrade for factory or aftermarket systems.
Perfect for:
- Plug-and-play bass upgrade
- Compact powered subwoofer system
- Factory radio integration
- Trunk or behind-seat installation
| Brand | Alpine |
| Size | 10" |
| Enclosure dimensions | 16.75” (W) x 13.5” (D) x 13.33” (H) |
| Enclosure type | Sealed |
| Weight | 30.5 lbs |
| Driver | 10” Subwoofer, 3Ω Voice coils |
| Power Handling | 300W RMS / 450W P |
| Frequency Response | 35Hz-200Hz |
| Low-pass filter | 50 Hz-150Hz (adjustable) |
| Phase control | 0°-180° |
| Inputs | Low-level / Hi-level (selectable) |
| Remove level control | Included (0-12 dB) |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
