Alpine HDZ-W10

We are a Alpine authorized dealer so you get up-to-date, fully warrantied products.

What's Inside?
• 10" 2400W Car Subwoofer
• One 10" Dual 4-ohm voice coil subwoofer
• Grille
• Aluminum trim ring
• Two voice coil jumpers (installed)
• 3mm Hex key

Features Meticulously Crafted

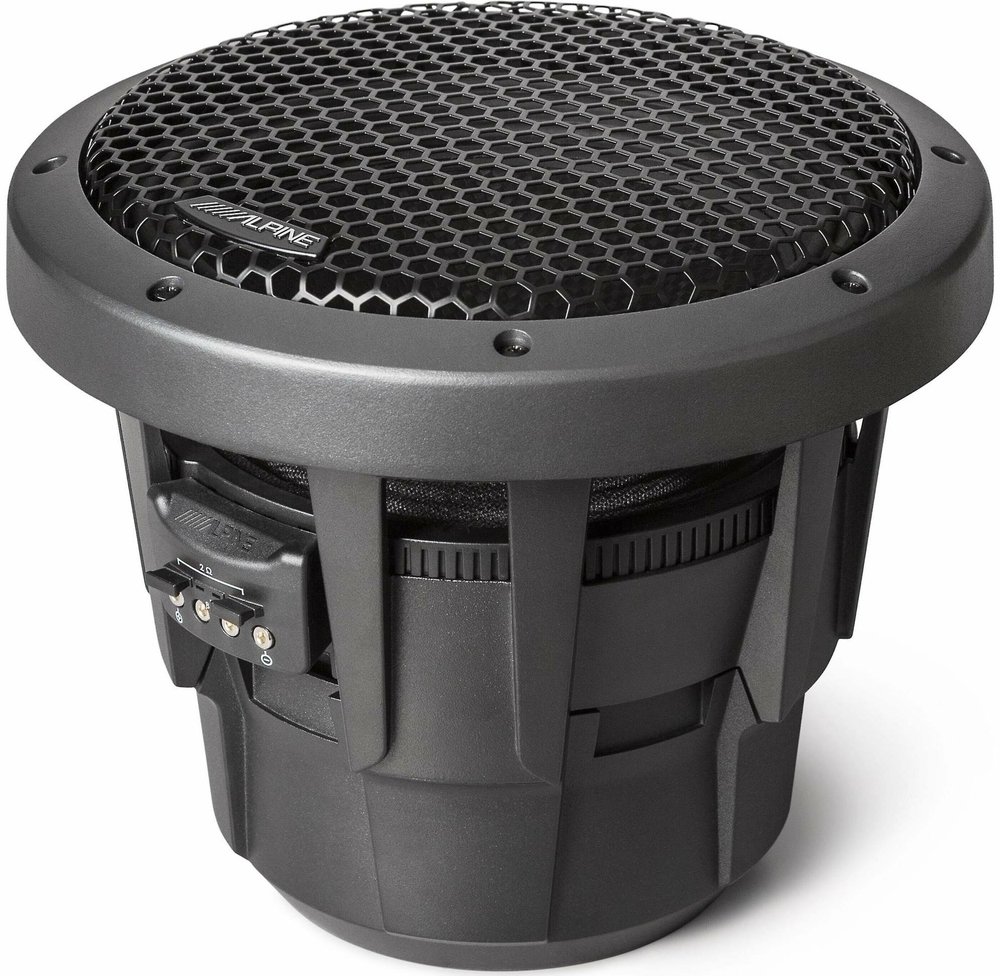

The HDZ-W10 Status 10" Subwoofer is engineered with precision, featuring a 10-inch pulp-mica cone, a carbon fiber dust cap, and a cast aluminum frame for durability and enhanced heat dissipation. Its triple stacked high-power strontium ferrite magnets (174oz x 3) ensure robust magnetic flux, while dual progressive spiders with integrated tinsel leads and a high-amplitude multi-roll (H.A.M.R.) surround guarantee precise cone movement and minimal distortion. Encased in an included mesh grille with aluminum trim ring, this subwoofer offers a mounting depth of 7-7/16”, an X-Max of 20mm, a 65mm voice coil, a frequency response of 26Hz-200Hz, a sensitivity of 82.2dB, and a nominal impedance (DCR) of 4Ω+4Ω, with a power handling capability of 800W RMS / 2400W Peak for an immersive bass experience.

High-Performance Subwoofer with Premium Materials and Power

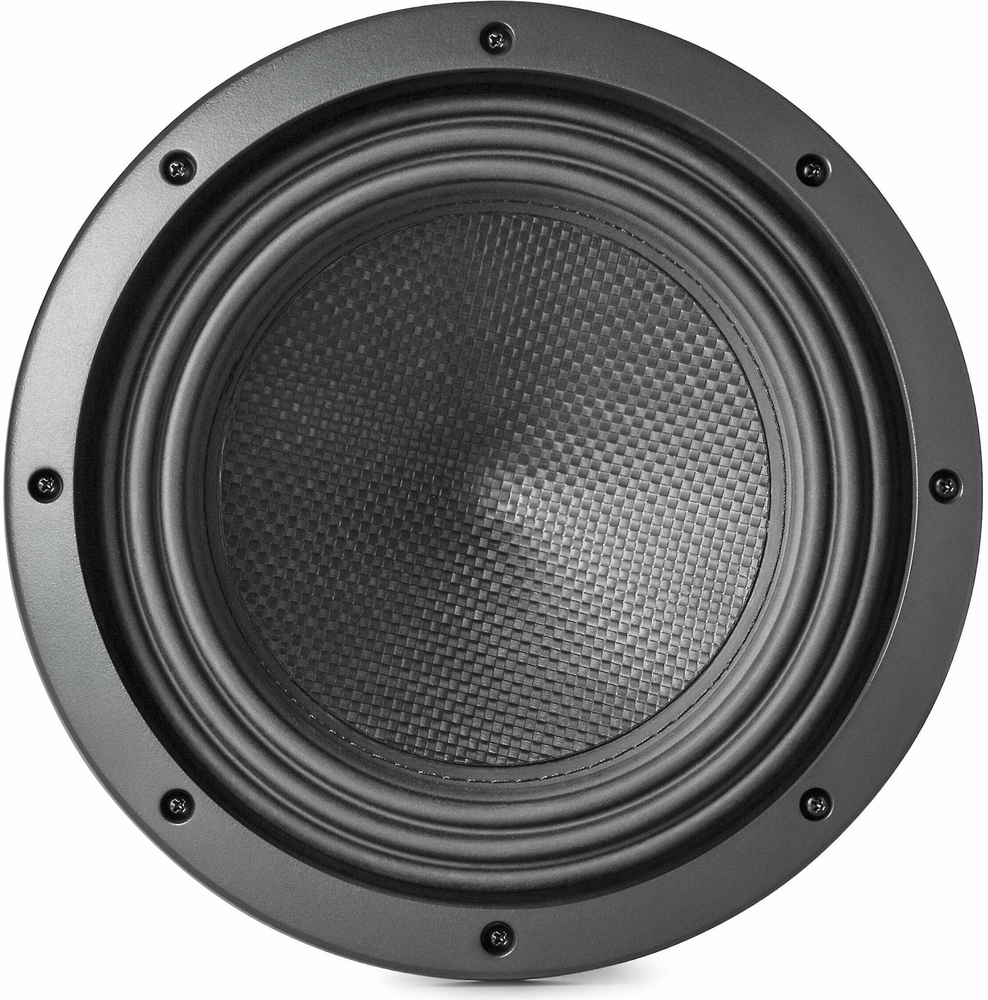

Experience precision and power with a Pulp-Mica cone that delivers lightweight rigidity for accurate bass reproduction. The carbon fiber dust cap enhances structural strength while improving heat dissipation. A cast aluminum frame ensures durability and aids in cooling, while triple stacked high-power Strontium ferrite magnets (174oz x 3) generate exceptional magnetic force for increased motor efficiency and deep, controlled bass output.

Precision-Engineered Subwoofer for Maximum Control and Style

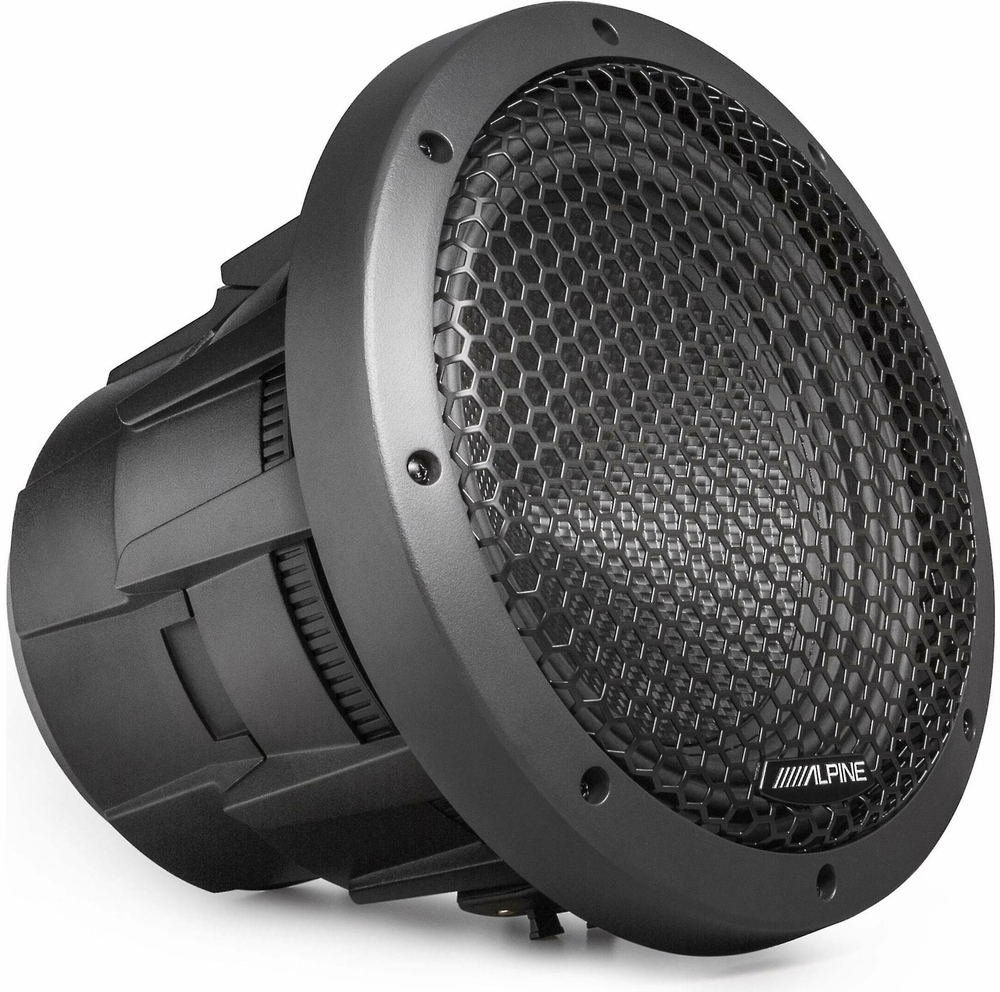

Enjoy accurate, distortion-free bass with Dual Progressive Spiders featuring Integrated Tinsel Leads, ensuring precise cone movement and reliable performance. The High-Amplitude Multi-Roll (H.A.M.R.) Surround enables maximum excursion for deeper bass while maintaining complete control over cone motion. An included mesh grille with aluminum trim ring not only protects the subwoofer cone but also adds a sleek, professional look to your setup.
